HiFi-Cassettendeck RC-302
Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1984 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 181229
aus Katalog 1984
aus Katalog 1984

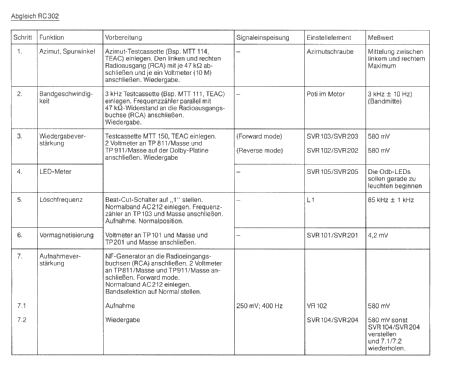

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Various materials
- from Radiomuseum.org
- Model: HiFi-Cassettendeck RC-302 - Siemens & Halske, -Schuckert
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 420 x 110 x 270 mm / 16.5 x 4.3 x 10.6 inch
- Notes
-
Siemens System 302; HiFi Cassettendeck RC 302, Übertragungsbereich (A/W): Normalband (AC212) 30-14000 Hz, Chromdioxid (AC 512) 30-16000 Hz,Metallband (AC 711) 30-18000 Hz
Gehäusefarben in Braun oder Bronze.
- Literature/Schematics (1)
- Original Siemens Service Unterlagen
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
