• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1984

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 144703

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors

• Wave bands
• - without

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org

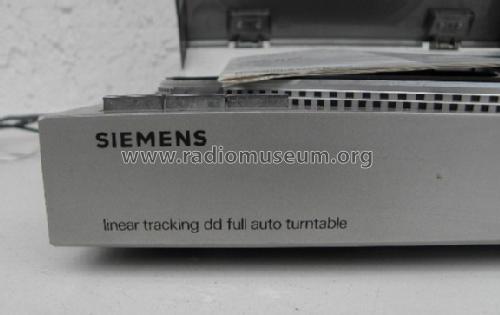

• Model: HiFi Plattenspieler RW612 - Siemens & Halske, -Schuckert

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 335 x 100 x 340 mm / 13.2 x 3.9 x 13.4 inch

• Notes

• 15 IC`s

  Magnet-System Audio Technica AT 51,Gehäuse in den Farben Braun oder Bronze.

• Mentioned in
• Original Siemens Service Unterlagen

• Literature/Schematics (1)
• Original advert, 1984.

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
