• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1979 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 144704

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org

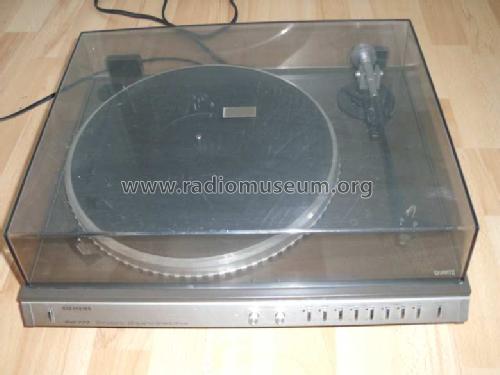

• Model: HiFi Plattenspieler RW777 - Siemens & Halske, -Schuckert

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 440 x 174 x 380 mm / 17.3 x 6.9 x 15 inch

• Notes

• IC`s 5; Quarzgesteuerter Servomotor, Direktantrieb zwei Geschwindigkeiten, Magnetsystem Audio Technica AT-71. Stufenlos aufstellbare Klarsichthaube, in Farbe: Braun/Bronze.

  Bestandteil der Siemens HiFi-Anlage System 777, weitere Komponenten:
  • RC 777
  • RP 777
  • RE 777
  • RF 777
  • RH 777

• Mentioned in
• - - Manufacturers Literature (Bedienungsanleitung, Druckdatum 11/79)

• Literature/Schematics (1)
• -- Original-techn. papers. (Siemens Service Unterlagen)

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
