HiFi System RS250
Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1980
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 145916
Funkschau 22/1980, S. 57

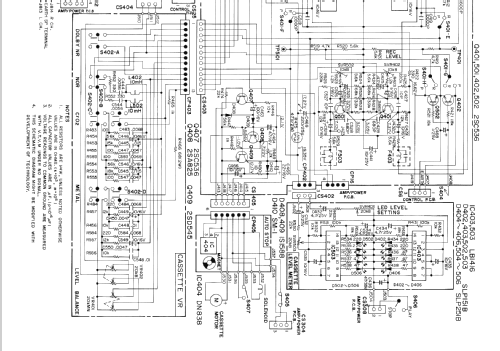

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 23
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Other Combination - see Notes
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Various materials
- from Radiomuseum.org
- Model: HiFi System RS250 - Siemens & Halske, -Schuckert
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Cassetten-Recorder und Plattenspieler. 8 IC; 5 UKW Stationstasten.
Alle Komponenten im gemeinsamen Gehäuse.
- Mentioned in

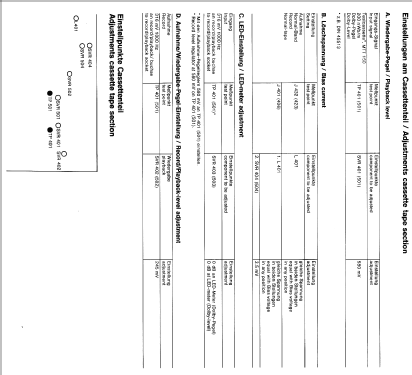

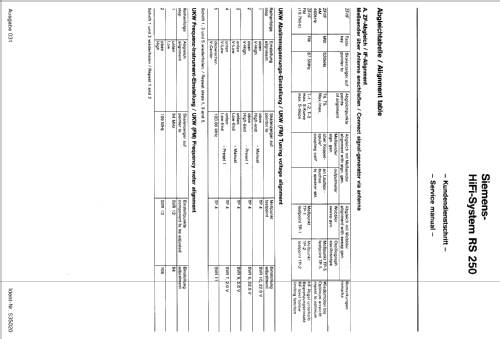

- Original Siemens Service Unterlagen
- Literature/Schematics (1)

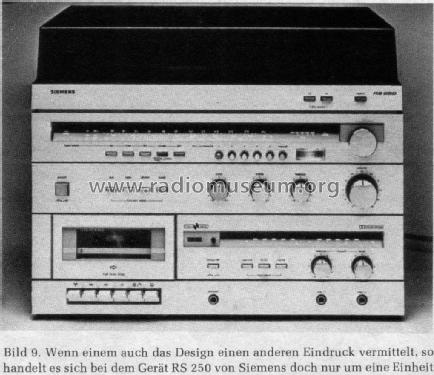

- Funkschau (22/1980, S. 57 / HiFi 80 in Düsseldorf)
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
