HiFi System RS348

• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1997 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 204659

• Picture

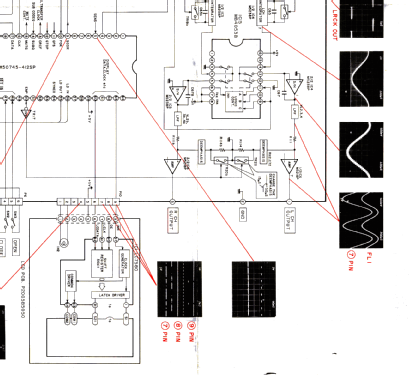

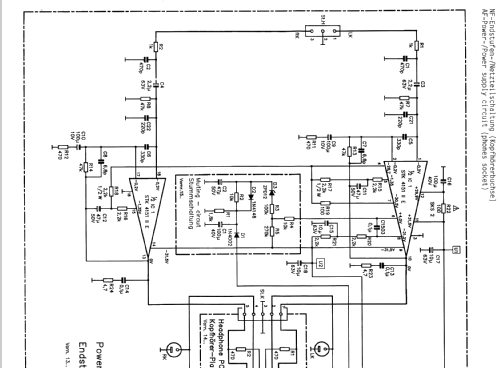

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Other Combination - see Notes

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 90 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: HiFi System RS348 - Siemens & Halske, -Schuckert

• Shape
• Console with Push Buttons.

• Notes
• Siemens HiFi System RS 348 mit Doppel Deck, Plattenspieler SBD 65 T Magnetsystem C-55 M und CD Player, NF Ausgangsleistung 2x 45 Watt an 4 Ohm

• Mentioned in
• Original Siemens Service Unterlagen

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
