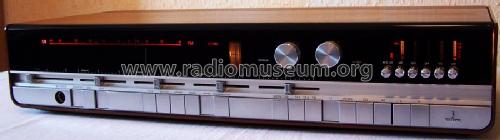

Klangmeister RS17 Electronic
Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1969–1971
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 28282

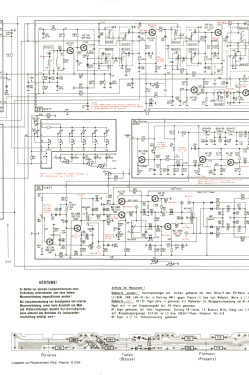

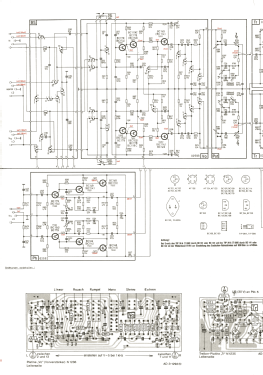

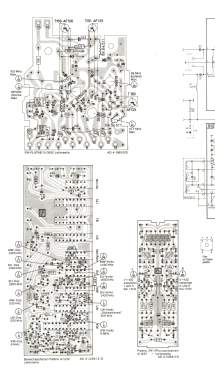

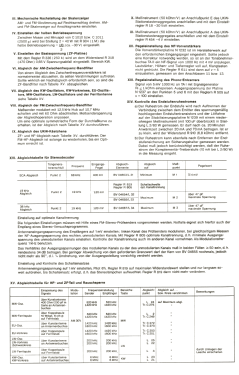

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 57
- Semiconductors
- AF106 AF124 AF125 BF194 BF195 BF163 AC121 AC132 AC152 AC191 BC107 BC109 BC143 BC161 BC178 BC179 BC113 BC114 BC153 BC154 BC147 BC148 BC149 BC158 BC168 BC169 BD130 2N3055
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 15 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 115-230 Volt
- Loudspeaker
- - This model requires external speaker(s).

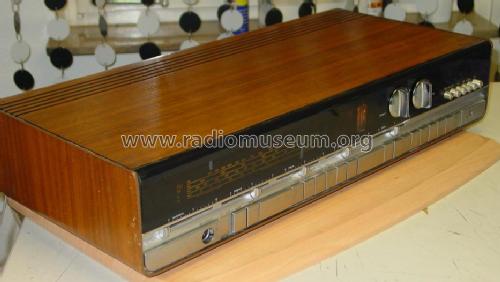

- Material
- Wooden case
- from Radiomuseum.org
- Model: Klangmeister RS17 Electronic - Siemens & Halske, -Schuckert
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 651 x 128 x 300 mm / 25.6 x 5 x 11.8 inch
- Notes
-
HiFi-Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 40 W (Sinus) umschaltbar auf 2× 20 W (Sinus).
Gehäuse: hell seidenglanz oder Schleiflack, weiss.Halbleitertypen nur einmal aufgeführt
- Net weight (2.2 lb = 1 kg)
- 10 kg / 22 lb 0.4 oz (22.026 lb)
- External source of data
- Erb
- Source of data
- Handbuch VDRG 1969/1970
