• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1962/1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 24368

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECC85 ECH81 EBF89 ECL86

• Number of Transistors

• Semiconductors
• OA91 OA91 B250C75

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

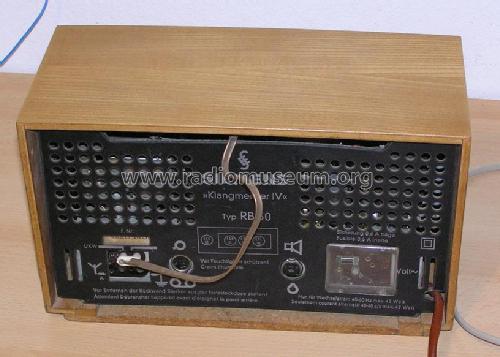

• Model: Klangmeister IV RB30 - Siemens & Halske, -Schuckert

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 360 x 210 x 155 mm / 14.2 x 8.3 x 6.1 inch

• Notes

• Ovallautsprecher 11,5 x 21 cm. Feste Ferrit-Antenne (Siferrit).

  Gehäuse in afrikanisch Birnbaum dunkel hochglanz, Nußbaum natur seidenglanz, oder Esche natur seidenglanz.

• Net weight (2.2 lb = 1 kg)
• 4.4 kg / 9 lb 11.1 oz (9.692 lb)

• Price in first year of sale
• 265.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1962/1963

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• -- Original prospect or advert (Catalogue Comptoir TSF Sud-Est 1963)
