• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1972/1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28677

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• B30C400 BF195 BF194 TBA570 AC187 AC188 AC117 BA166 AA116 BZY87

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

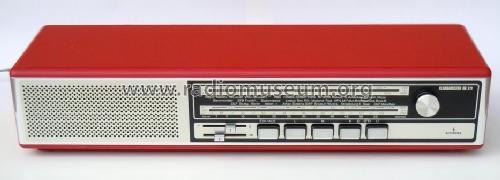

• Model: Klangmeister RG311 - Siemens & Halske, -Schuckert

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 530 x 110 x 155 mm / 20.9 x 4.3 x 6.1 inch

• Notes

• Gehäuse in weiss oder rot.

  Alternativbestückungen für Halbleiter:
  AC153K statt AC117K
  BZ102 0V7 statt BZY87
  AA119 statt AA116.

  Ovallautsprecher: 17 x 8 cm.

  Sehr ähnlich dem Neckermann / Körting Oslo 33341.

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1972/1973
