• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1971/1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28437

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 23

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

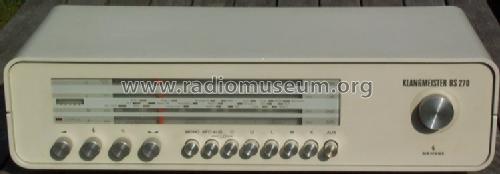

• Model: Klangmeister RS270 - Siemens & Halske, -Schuckert

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 490 x 134 x 205 mm / 19.3 x 5.3 x 8.1 inch

• Notes

• Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 10 W; zwei Lautsprecherboxen RZ270 gehören zum Lieferumfang.

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1971/1972
