Klangmeister RS70
Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1965/1966
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 26129

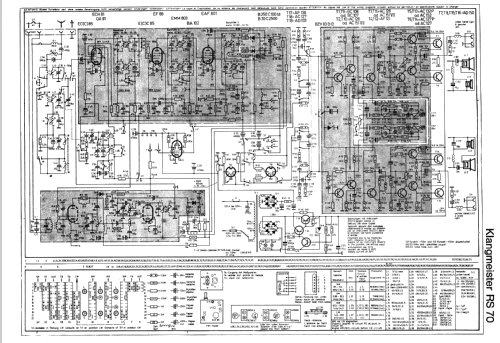

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Number of Transistors
- 22
- Semiconductors
- AC151 AC151 AC151 AC151 AF121 AF121 AC126 AC126 AC152 AC152 AD150 AD150 AD150 AD150 AC127 AC127 AC127 AD133 AF138 AF118 BC108 BC108
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 8 AM circuit(s) 12 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Klangmeister RS70 - Siemens & Halske, -Schuckert
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 620 x 225 x 210 mm / 24.4 x 8.9 x 8.3 inch
- Notes
- Stereo-Decoder eingebaut;
Stereo-NF-Verstärker mit 2 Gegentakt-Endstufen je 14 W.
Zwei Lautsprecherboxen (62×24×21 cm, 7,4 kg) mit je 2 LS im Lieferumfang.
- Net weight (2.2 lb = 1 kg)
- 10.3 kg / 22 lb 11 oz (22.687 lb)
- Price in first year of sale
- 548.00 DM
- External source of data
- erb
- Source of data
- Handbuch VDRG 1965/1966
- Mentioned in
- Taxliste Franzis Verlag
- Literature/Schematics (1)
- -- Original-techn. papers.
