• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1966/1967

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 26749

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECC85 ECH81 EBF89 EM84

• Number of Transistors
• 17

• Semiconductors
• AF124 AF124 AF124 TF65 SFT353 2SB257 2SB257 AC151 AC151 AC151 AC151 AC117 AC117 AD148 AD148 AD148 AD148

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

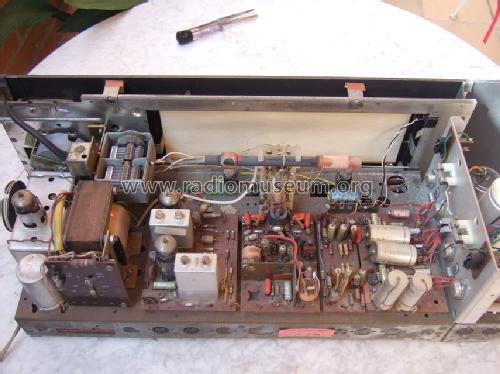

• Model: Klangmeister RS82 - Siemens & Halske, -Schuckert

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 595 x 200 x 230 mm / 23.4 x 7.9 x 9.1 inch

• Notes
• Stereo-Steuergerät. Verstärker mit 2 Gegentakt-Endstufen je 12 W. Zwei Lautsprecherboxen (595×236×230 mm, 6,9 kg) mit je 2 LS gehören zum Lieferumfang.

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Price in first year of sale
• 8,200.00 ATS

• External source of data
• erb

• Source of data
• Handbuch VDRG 1966/1967

• Literature/Schematics (1)
• -- Original-techn. papers.
