• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1960–1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 23844

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EL95

• Number of Transistors

• Semiconductors
• E250C50

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 125/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.8 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

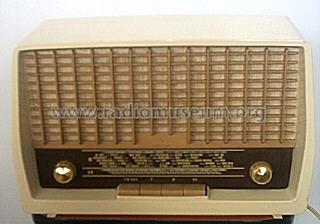

• Model: Kleinsuper RA10 - Siemens & Halske, -Schuckert

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 320 x 190 x 150 mm / 12.6 x 7.5 x 5.9 inch

• Notes

• Achtung: Chassis ist nicht vom Netz getrennt !

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• Price in first year of sale
• 154.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1960/61
