• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1955 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 251198

• Number of Tubes
• 6

• Valves / Tubes
• C3m C3m C3m C3m C3m C3m

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material

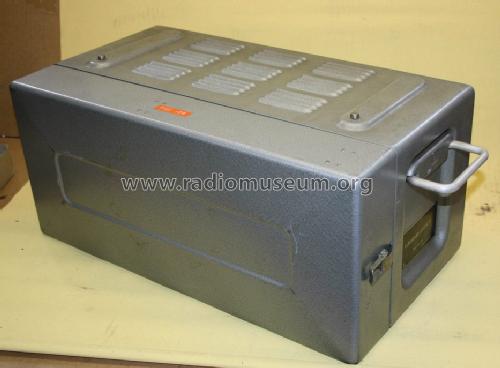

• Metal case

• from Radiomuseum.org

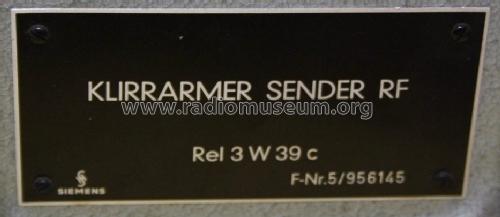

• Model: Klirrarmer Sender RF Rel 3W39 c - Siemens & Halske, -Schuckert

• Shape
• Boatanchor (heavy military or commercial set >20 kg).

• Dimensions (WHD)
• 540 x 360 x 230 mm / 21.3 x 14.2 x 9.1 inch

• Notes

• 60 Hz - 7,2 kHz.



• Net weight (2.2 lb = 1 kg)
• 17 kg / 37 lb 7.1 oz (37.445 lb)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
