• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1963/1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 24994

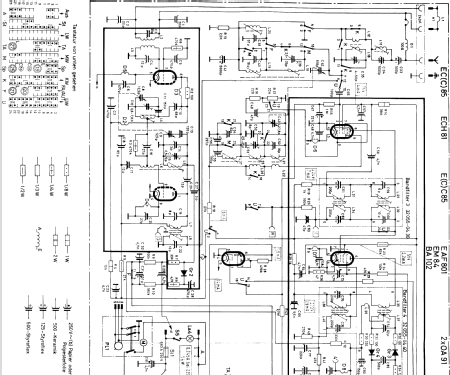

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EAF801 ECC83 EM84 ELL80

• Number of Transistors

• Semiconductors
• B250C125

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

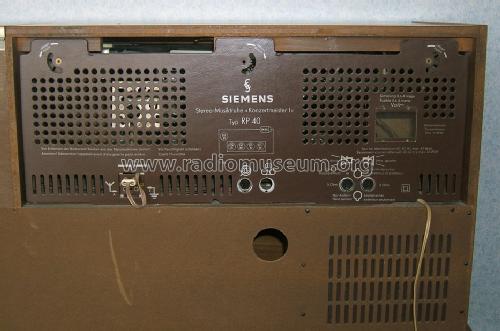

• Model: Stereo-Musiktruhe Konzertmeister I RP40 - Siemens & Halske, -Schuckert

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1160 x 800 x 370 mm / 45.7 x 31.5 x 14.6 inch

• Notes

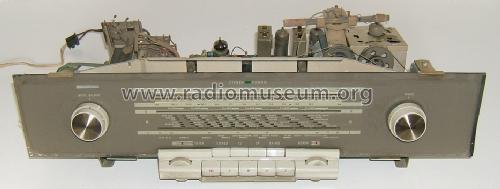

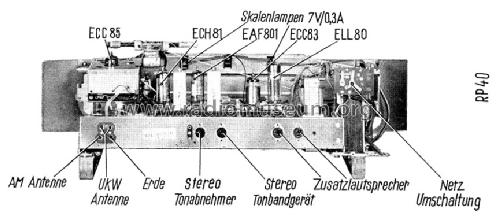

• Rundfunk-Chassis = RG41
  Phono-Chassis = Perpetuum-Ebner PE66

  Stereo-NF-Verstärker mit 2 Endstufen je 3 W
  Stereo-Decoder nachrüstbar.

• Net weight (2.2 lb = 1 kg)
• 32 kg / 70 lb 7.8 oz (70.485 lb)

• Price in first year of sale
• 998.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1963/1964

• Mentioned in
• -- Original-techn. papers.
