• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1965/1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 26240

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EAF801 ECC83 EMM803 ELL80

• Number of Transistors
• 3

• Semiconductors
• AF118 AF126 AF126 AA113 AA118

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

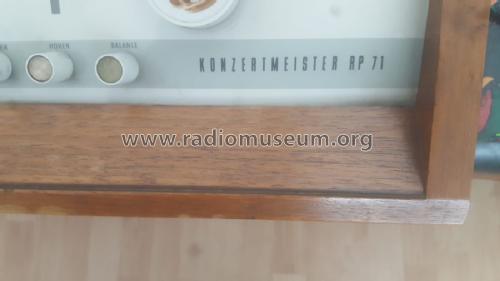

• Model: Konzertmeister RP71 - Siemens & Halske, -Schuckert

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 120 x 715 x 360 mm / 4.7 x 28.1 x 14.2 inch

• Notes
• Rundfunk-Chassis = RG71, Vollstereo, NF-Verstärker mit 2 Endstufen je 3,5 W;
  Phono-Chassis = Perpetuum-Ebner PE66.

• Net weight (2.2 lb = 1 kg)
• 35 kg / 77 lb 1.5 oz (77.093 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1965/1966

• Literature/Schematics (1)
• -- Original-techn. papers.
