• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1966/1967

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 26600

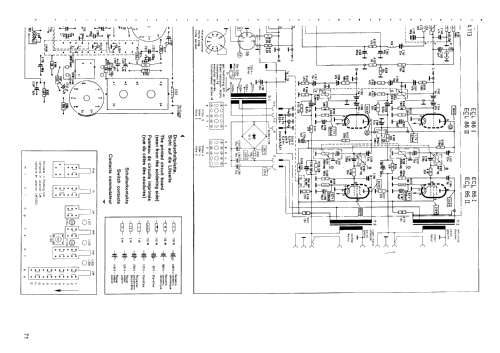

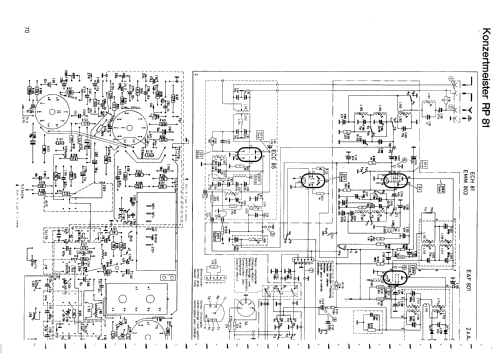

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EAF801 ECL86 EMM803 ECL86

• Number of Transistors
• 3

• Semiconductors
• BC108 BC108 BC108 AA113 AA118

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

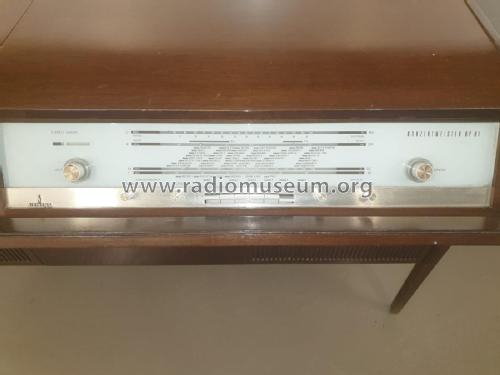

• Model: Konzertmeister RP81 - Siemens & Halske, -Schuckert

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1200 x 715 x 360 mm / 47.2 x 28.1 x 14.2 inch

• Notes
• Rundfunk-Chassis = RG81
  Stereo-Decoder eingebaut
  Stereo-NF-Verstärker mit 2 Endstufen je 3 W

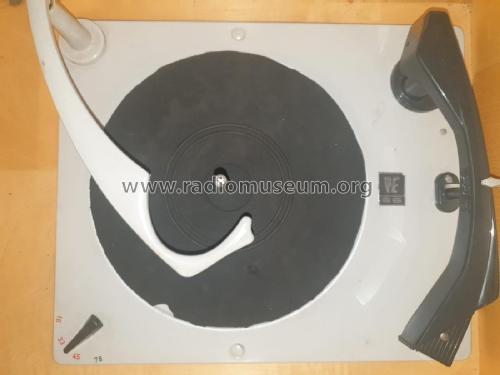

  Phono-Chassis = Perpetuum-Ebner PE66.

• Net weight (2.2 lb = 1 kg)
• 35 kg / 77 lb 1.5 oz (77.093 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1966/1967
