• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1945–1947

• Category
• Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter

• Radiomuseum.org ID
• 5296

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 0

• Valves / Tubes
• VCL11

• Main principle
• RF Converter/Adapter (not voltage converter)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - - No sound reproduction output.

• Material
• Various materials

• from Radiomuseum.org

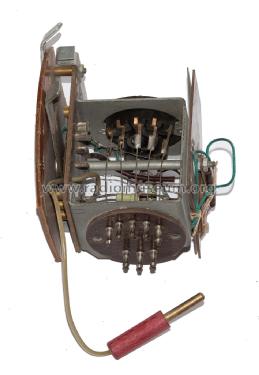

• Model: KW-Adapter für DKE Kurzwellen-Vorsatzgerät - Siemens & Halske, -Schuckert

• Notes
• eigentlich kein richtiges "Vorsatzgerät", aber vom Hersteller so genannt

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Schenk/Regelien Nr. 29 von 1947
