• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 20641

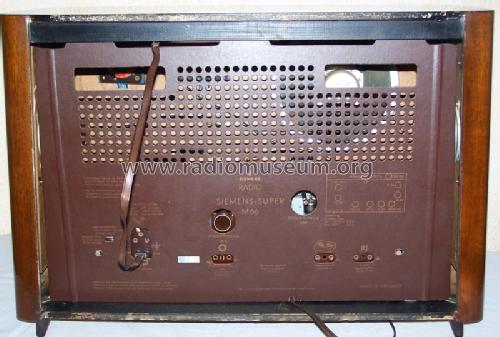

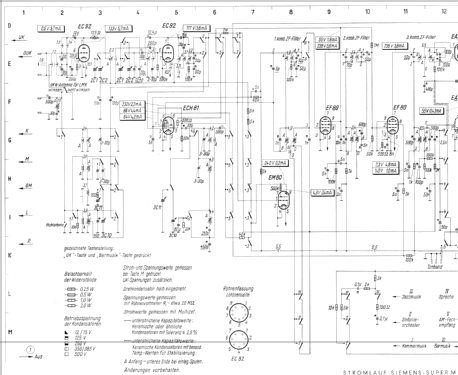

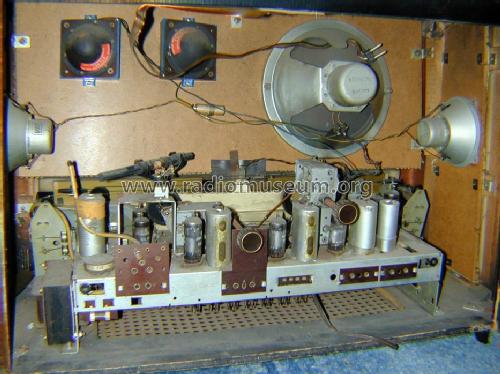

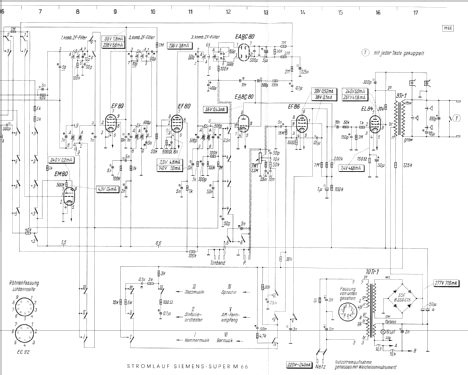

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• EC92 EC92 ECH81 EF89 EM80 EF80 EABC80 EF86 EL84

• Number of Transistors

• Semiconductors
• B250C75

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110, 125, 220, 250 Volt

• Loudspeaker
• 5 Loudspeakers

• Power out
• 5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: M66 - Siemens & Halske, -Schuckert

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 680 x 460 x 310 mm / 26.8 x 18.1 x 12.2 inch

• Notes
• ZF-Bandbreite regelbar; drehbare Ferritantenne; Ortssendertaste für MW und UKW.

• Net weight (2.2 lb = 1 kg)
• 14.3 kg / 31 lb 8 oz (31.498 lb)

• Price in first year of sale
• 469.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1956/57
