- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1990 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 144640
aus siemenskatalog 1981
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 12
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage

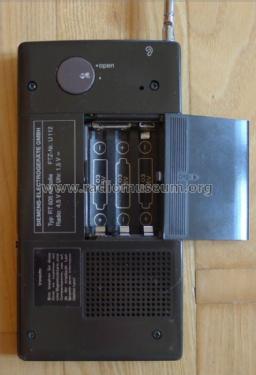

- Dry Batteries / 3 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

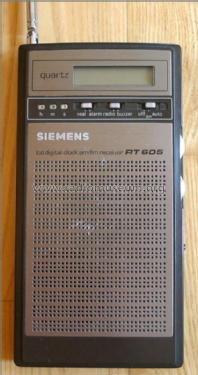

- Model: Melodie RT605 - Siemens & Halske, -Schuckert
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 72 x 140 x 125 mm / 2.8 x 5.5 x 4.9 inch
- Notes
-
IC`s3; mit eingebauter LCD Uhr, externes Netzteil anschließbar. 1x Silberoxyd-Knopfcelle Type G 13 für LCD Uhr
in Farbe: Braun (Front ist Bronze ).
- Net weight (2.2 lb = 1 kg)
- 0.170 kg / 0 lb 6 oz (0.374 lb)
- Mentioned in
- Original Siemens Service Unterlagen
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
