• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1956 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 154794

• Number of Tubes
• 8

• Valves / Tubes
• C3g C3g C3g C3g C3g C3g E2e F2a

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Meßsender Rel 3 W 317 - Siemens & Halske, -Schuckert

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 550 x 368 x 280 mm / 21.7 x 14.5 x 11 inch

• Notes
• Frequenzbereich 10 Hz bis 1 MHz.
  Ausgangsspannung stetig einstellbar zwischen 50 mV und 20 V.

• Net weight (2.2 lb = 1 kg)
• 35 kg / 77 lb 1.5 oz (77.093 lb)

• Mentioned in

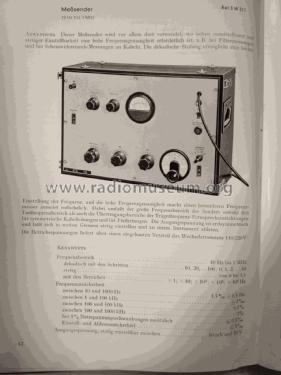

• Siemens Messgeräte für die Nachrichtentechnik 1956

• Author
• Model page created by Folkert Rothe. See "Data change" for further contributors.
