- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1956 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 86911
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Tuned circuits
- 8 AM circuit(s) 13 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110, 125, 220, 250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Musiktruhe T333 - Siemens & Halske, -Schuckert
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 920 x 910 x 440 mm / 36.2 x 35.8 x 17.3 inch
- Notes
- Chassis: H64DG, Gehäuse: Edelholz hell oder dunkel, Lautsprecher: 3× dyn. Hochtonlautsprecher HM10, Plattenwechsler: Dual 1003, Kristallsystem CDS3.
Auch als USA-Export.
- Net weight (2.2 lb = 1 kg)
- 60 kg / 132 lb 2.5 oz (132.159 lb)
- Mentioned in

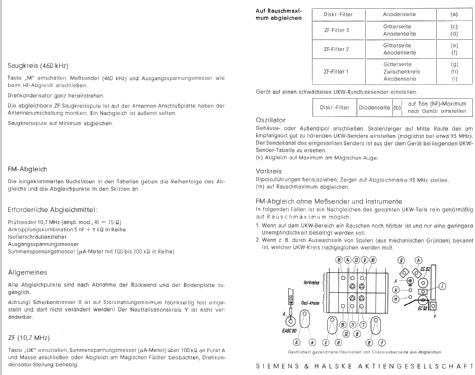

- -- Original-techn. papers.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 9-58, Set 411, Servicer)
- Author
- Model page created by Bernd Pötzsch. See "Data change" for further contributors.
