• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1937

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 127343

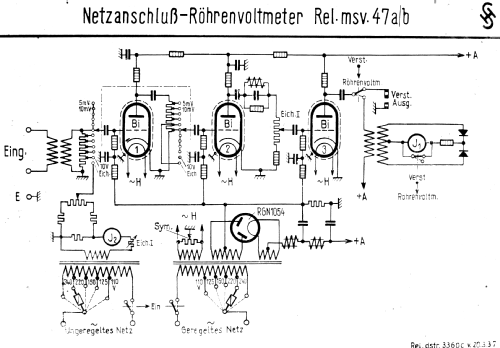

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• Bi Bi Bi RGN1054

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Netzanschluß-Röhrenvoltmeter Rel.msv.47bVII B9/10f - Siemens & Halske, -Schuckert

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 470 x 260 x 256 mm / 18.5 x 10.2 x 10.1 inch

• Notes
• Gleichspannungsmessung im Bereich von 5 mV bis 10 Volt. Leistungsaufnahme ca. 30 VA
  Gewicht gemessen ohne Deckel.

• Net weight (2.2 lb = 1 kg)
• 22.6 kg / 49 lb 12.5 oz (49.78 lb)

• Author
• Model page created by Geert Schulte. See "Data change" for further contributors.
