Oscillarzet 05

• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1964 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 82964

• Picture

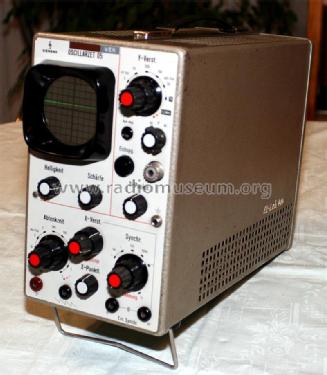

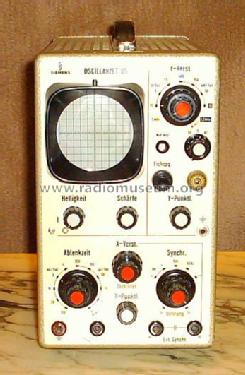

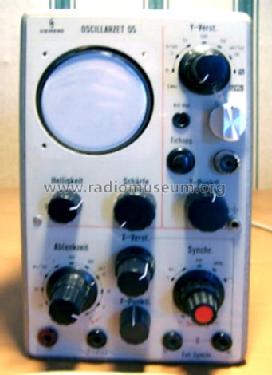

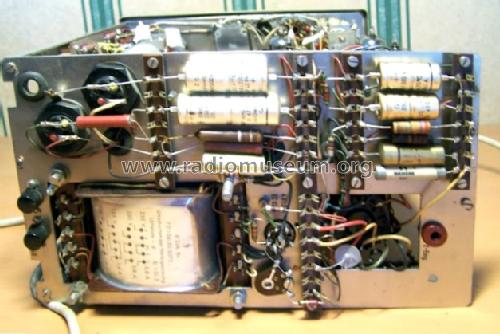

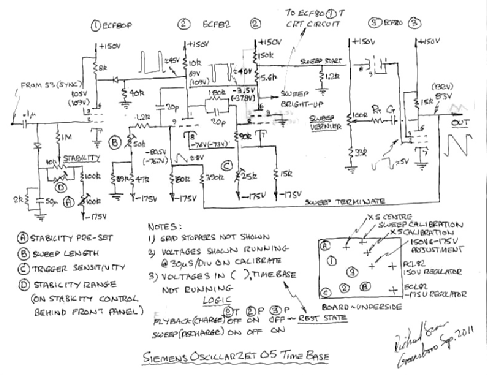

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• EF80 EF80 PCL84 PCL84 EC92 ECF80 ECF80 ECF80 ECC85 PCL82 ECL82 DG7-74A ES11

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110, 125, 220, 235 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Oscillarzet 05 - Siemens & Halske, -Schuckert

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 157 x 272 x 346 mm / 6.2 x 10.7 x 13.6 inch

• Notes
• Oszilloskop/Oszillograph.
  X-Teil: 100 ms bis 1 µs/Div, 5× Dehnung schaltbar, Rampen-Ausgang; Y-Teil: 15 V bis 50 mV/Div mit BW DC bis 5 MHz und 15 mV/Div mit BW DC bis 1,2 MHz; Z-Eingang unter Gehäuseklappe direkt auf CRT-Kathode.

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Author
• Model page created by Arndt Markus Hettche. See "Data change" for further contributors.
