Oszillograf GO 60
Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1940 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 272641
- Wave bands
- - without
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Oszillograf GO 60 - Siemens & Halske, -Schuckert
- Shape
- Tablemodel, with any shape - general.
- Notes
-

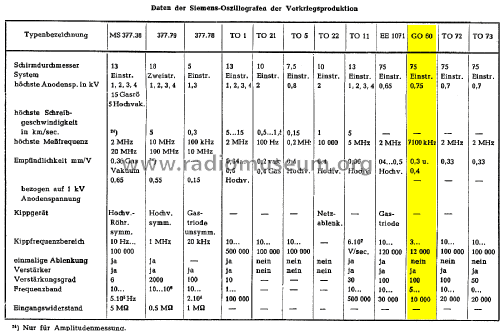

Einstrahloszillograf GO 60
Schirmdurchmesser: 75 mm
Kippfrequenz: 3 Hz ... 12 kHz
Y-Verstärker:
Verstärkungsgrad: 100
Frequenzband: 5 Hz ... 10 kHz
- Mentioned in
- Hilfsbuch für Katodenstrahloszillografie, H. Richter, 1.Aufl., 1950, Franzis-Verlag
