Pegelmesser 2 - 1200kHz Rel 3D316a
Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1958 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 142578
- Number of Tubes
- 12
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Various materials
- from Radiomuseum.org

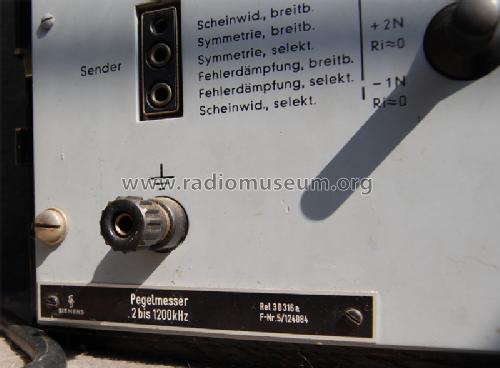

- Model: Pegelmesser 2 - 1200kHz Rel 3D316a - Siemens & Halske, -Schuckert
- Shape
- Boatanchor (heavy military or commercial set >20 kg).
- Dimensions (WHD)
- 550 x 368 x 280 mm / 21.7 x 14.5 x 11 inch
- Notes
- Pegelmesser 2 bis 1200 kHz. Meßbereich -10 bis +3 Np (Neper).
- Net weight (2.2 lb = 1 kg)
- 35 kg / 77 lb 1.5 oz (77.093 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Folkert Rothe. See "Data change" for further contributors.
