• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1974–1976

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29503

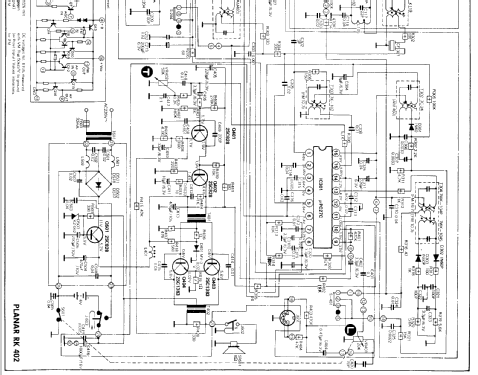

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 4×1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: planar RK402 - Siemens & Halske, -Schuckert

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 253 x 150 x 44 mm / 10 x 5.9 x 1.7 inch

• Notes
• ICs: 1.

• Net weight (2.2 lb = 1 kg)
• 1.3 kg / 2 lb 13.8 oz (2.863 lb)

• External source of data
• Erb

• Source of data
• Katalog RFP 1974

• Mentioned in
• Handbuch VDRG 1975/1976

• Other Models

• Here you find 2521 models, 2118 with images and 1334 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
