- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1900 ??
- Category
- Morse-Equipment & TTY, RTTY, TDD etc.
- Radiomuseum.org ID
- 288085

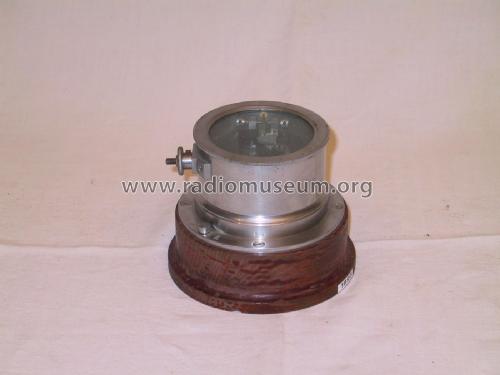

Collection privée (réf : 1695)
Collection privée (réf : 1695)
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Various materials
- from Radiomuseum.org
- Model: Neutrales Relais - Siemens & Halske, -Schuckert
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 140 x 120 x 140 mm / 5.5 x 4.7 x 5.5 inch
- Notes
-
Dosen-Relais mit Flügelanker. Das Relais ist neutral, das heißt nicht polarisiert - die Rückstellkraft des Flügelankers wird von einer Feder geliefert. Das Relais arbeitet unabhängig von der Stromflußrichtung.
- Net weight (2.2 lb = 1 kg)
- 1.9 kg / 4 lb 3 oz (4.185 lb)
- Author
- Model page created by Musée des Radios Museum. See "Data change" for further contributors.
