• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1985 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 201596

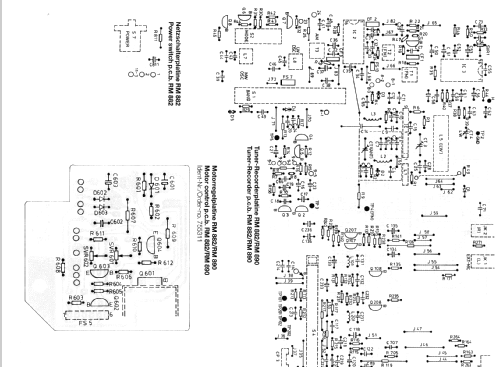

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 450/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / 10 x 1,5 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 8 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

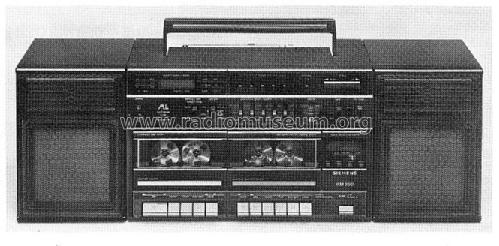

• Model: Radiorecorder Stereo RM882 - Siemens & Halske, -Schuckert

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• Stereo Radiorecorder LW, MW, UKW, 5 UKW, 5 MW und 5 LW Stadionstasten, Ausgangsleistung 2x 4 Watt Übertragungsbereich 100-10000 Hz. Doppel Cassette Deck.

• Mentioned in
• Original Siemens Service Unterlagen

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
