• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1979 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 110468

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 200 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

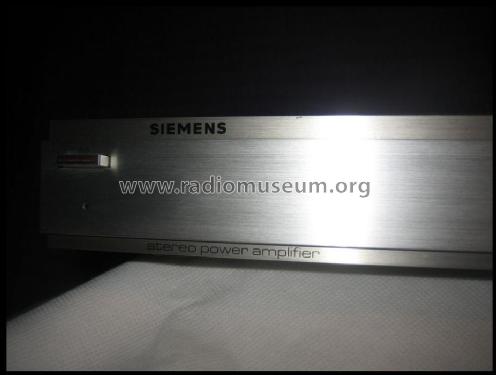

• Model: Stereo Power Amplifier RE777 - Siemens & Halske, -Schuckert

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 440 x 55 x 300 mm / 17.3 x 2.2 x 11.8 inch

• Notes

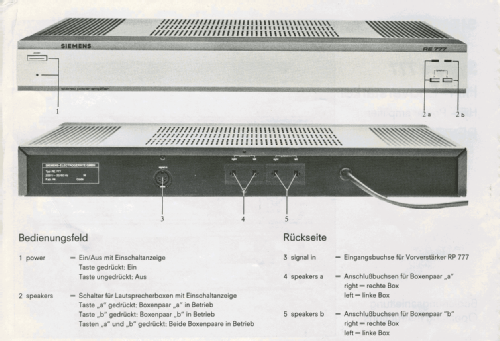

• Endstufe, 4 LS-Buchsen. Ausgangsleistung : 2 x 80 Watt Full Dynamic Power

  in Farbe: Braun / Bronze

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
