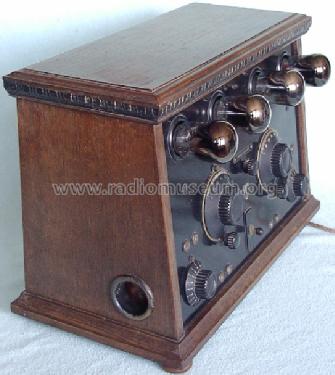

Rfe22

• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1927–1929

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 5580

• Picture

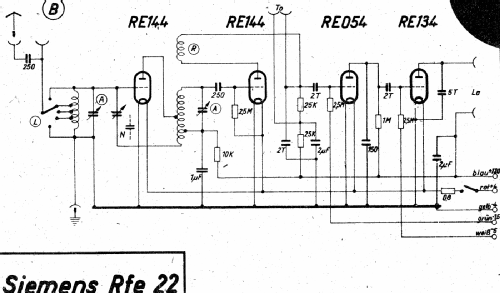

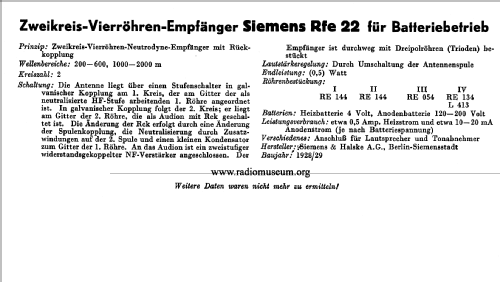

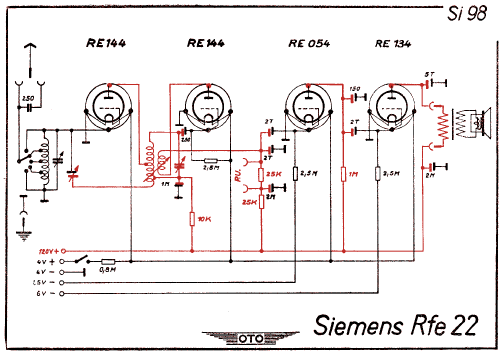

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• RE144 RE144 RE054 RE134

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown); 1 Special; 2 AF stage(s); Neutrodyne

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 120+4 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org
• Model: Rfe22 - Siemens & Halske, -Schuckert

• Shape
• Tablemodel, slant panel.

• Dimensions (WHD)
• 440 x 310 x 250 mm / 17.3 x 12.2 x 9.8 inch

• Notes
• Rfe18 ohne Heizregler [560]

• Net weight (2.2 lb = 1 kg)
• 7.9 kg / 17 lb 6.4 oz (17.401 lb)

• Price in first year of sale
• 225.00 RM +

• Source of data
• Radio-Diehr, Berlin, 1928/1929 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + FS-Bestückungstabellen

• Mentioned in
• Kat. Radio-WEB 1929 (?!)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
