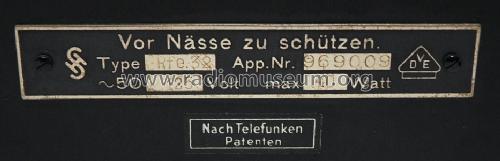

Rfe32 (40W/134)

• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1929/1930

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 5546

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• RENS1204 REN1104 or REN804 REN1004 RE134 RGN1054

• Main principle
• TRF with regeneration; 1 Special; 2 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast and LongWave in ONE range.

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Rfe32 - Siemens & Halske, -Schuckert

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 470 x 230 x 230 mm / 18.5 x 9.1 x 9.1 inch

• Notes
• L+C-Abst.

• Net weight (2.2 lb = 1 kg)
• 11.5 kg / 25 lb 5.3 oz (25.33 lb)

• Price in first year of sale
• 418.00 RM !

• Source of data
• Arlt's grosser Radiokatalog 1930 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + FS-Bestückungstabellen

• Mentioned in
• Funkgeschichte der GFGF (8756)

• Literature/Schematics (1)
• Illustrierter Radio-Katalog 1929-1930 S. 22

• Picture reference
• Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.
