• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1925/1926

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 5619

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• RE86 RE84a RE86 RE84

• Main principle
• TRF with regeneration; 1 Special; 2 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org

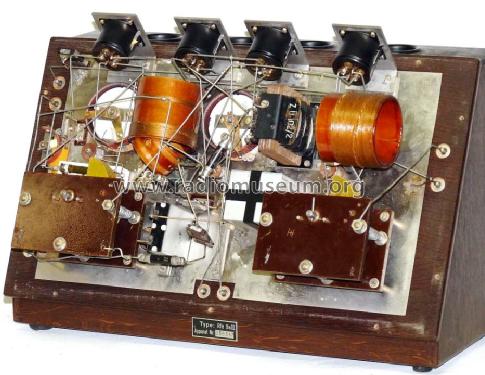

• Model: Rfe9a [alt] - Siemens & Halske, -Schuckert

• Shape
• Tablemodel, slant panel.

• Dimensions (WHD)
• 430 x 270 x 180 mm / 16.9 x 10.6 x 7.1 inch

• Notes
• Innenaufbau wie «D-Zug» . Elektrisch wie Rfe 9b, der aber Spulenhalter (Spulenkoppler) außen besitzt.

• Price in first year of sale
• 275.00 RM

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Mentioned in
• Archiv DRM

• Picture reference
• Eine Abbildung findet sich im Doppelband "Radios von gestern"
