• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1936

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 111770

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• GLe1000/02/04 GLe1000/02/04

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

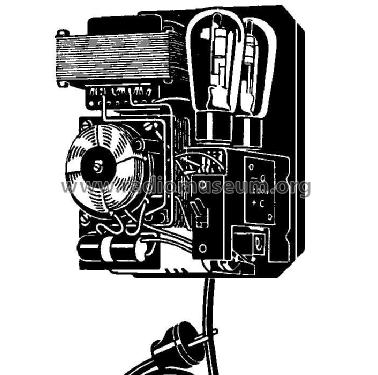

• Model: Röhren-Vorschaltgleichrichter VE GL 1 - Siemens & Halske, -Schuckert

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 165 x 215 x 135 mm / 6.5 x 8.5 x 5.3 inch

• Notes
• Eingebauter Schutz gegen HF-Störungen, max. 50 W.

• Net weight (2.2 lb = 1 kg)
• 6.3 kg / 13 lb 14 oz (13.877 lb)

• Price in first year of sale
• 64.00 RM

• Mentioned in
• -- Original prospect or advert (Siemens Rundfunkteile und Zubehör Aug. 1939)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
