- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1979–1983
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 168505

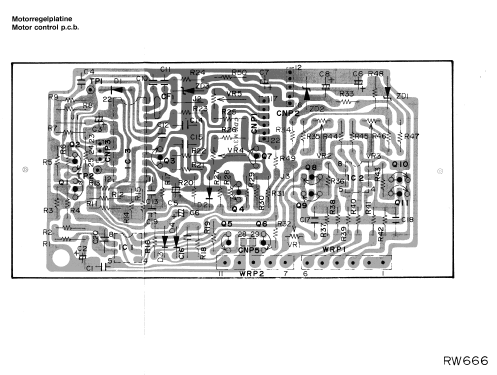

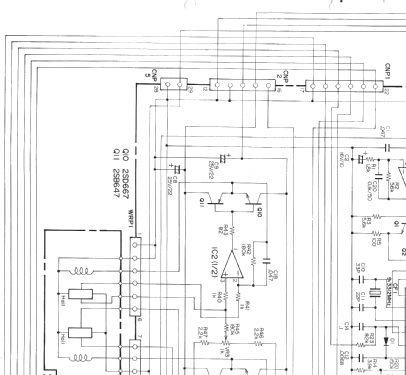

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org

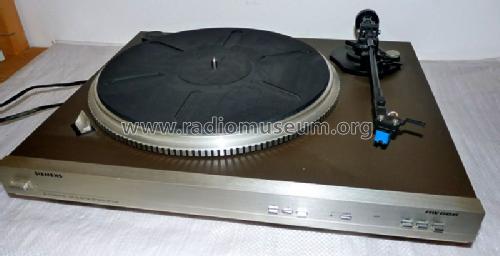

- Model: RW-666 - Siemens & Halske, -Schuckert
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 440 x 130 x 370 mm / 17.3 x 5.1 x 14.6 inch
- Notes
-
2 Motoren, PLL quartz-direct-drive, 33/45 UpM
Vollautomat, pitch control, Stroboskop, anti skating.
- Net weight (2.2 lb = 1 kg)
- 7 kg / 15 lb 6.7 oz (15.419 lb)
- Author
- Model page created by Peter Böhm. See "Data change" for further contributors.
