S541-RF
Siemens Italia; Milano
- Country
- Italy
- Manufacturer / Brand
- Siemens Italia; Milano
- Year
- 1946/1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 119645

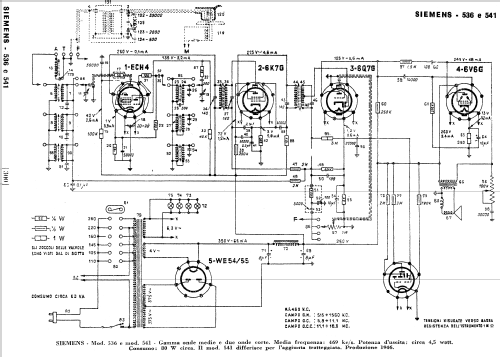

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 469 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 160; 220; 280 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 25 cm = 9.8 inch
- Power out
- 4.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: S541-RF - Siemens Italia; Milano
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 940 x 840 x 460 mm / 37 x 33.1 x 18.1 inch
- Notes
- Mobile impiallaciato in noce e radica di pioppo con 2 vani portadischi laterali Radio e giradischi 78 giri accessibili da sopra alzando il coperchio.
- Net weight (2.2 lb = 1 kg)
- 42 kg / 92 lb 8.2 oz (92.511 lb)
- Source of data
- Guida Pratica Antique Radio III (2000)
- Literature/Schematics (1)
- Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 300)
