• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1957/1958

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 99790

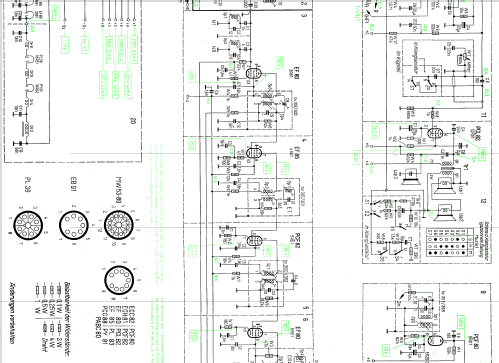

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• MW53-80

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Other, details in remarks or not known. / AC/DC 220 / AC 240 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: S653ks - Siemens & Halske, -Schuckert

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 690 x 960 x 520 mm / 27.2 x 37.8 x 20.5 inch

• Net weight (2.2 lb = 1 kg)
• 59 kg / 129 lb 15.3 oz (129.956 lb)

• Price in first year of sale
• 1,489.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1957/58

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
