- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1959
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 74334
Reto Ulrich
Reto Ulrich
Reto Ulrich

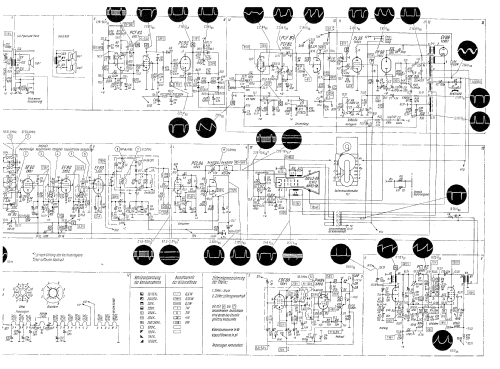

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Valves / Tubes
- AW53-88
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- Wave Bands given in the notes.
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- AC/DC-set / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: S953 - Siemens & Halske, -Schuckert
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 830 x 850 x 430 mm / 32.7 x 33.5 x 16.9 inch
- Notes
- Technische Daten wie T943, jedoch mit 53-cm-Bildröhre im Standgehäuse auf Beinen mit verschließbaren Türen.
Fernbedienung (Helligkeit und Lautstärke) DM 13,-. VHF, UHF vorbereitet.
- Price in first year of sale
- 1,098.00 DM
- Source of data
- HdB d.Rdf-& Ferns-GrH 1959/60
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Alexander Schmitz. See "Data change" for further contributors.
