Sat-Receiver FR 105 M6

• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1994 ?

• Category
• Digital terrestrial, Internet and SAT receiver (also analogue)

• Radiomuseum.org ID
• 252291

• Picture

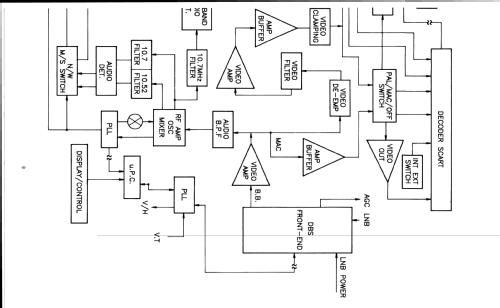

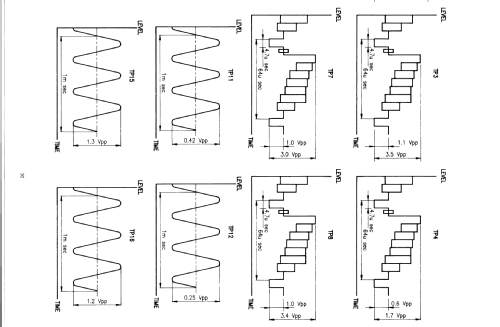

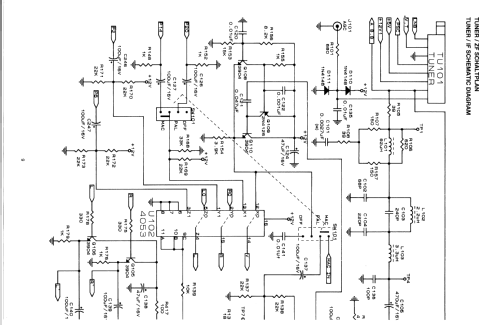

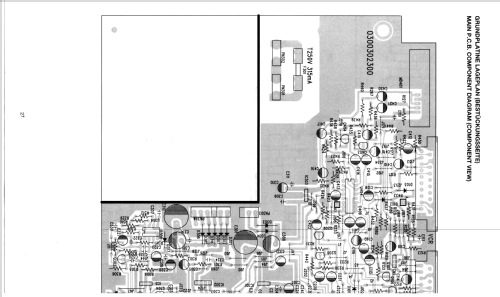

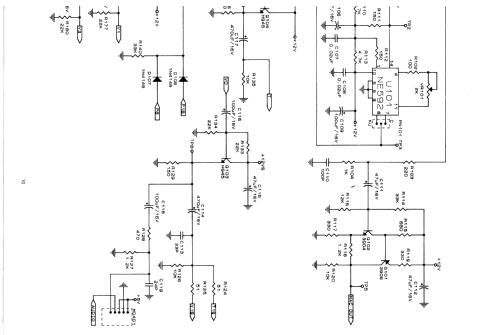

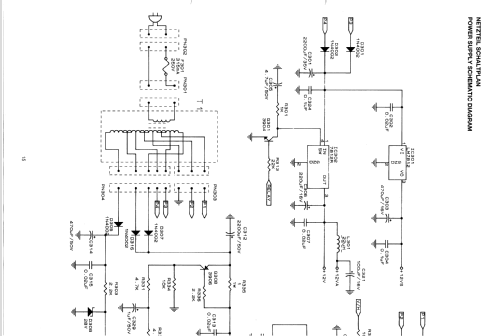

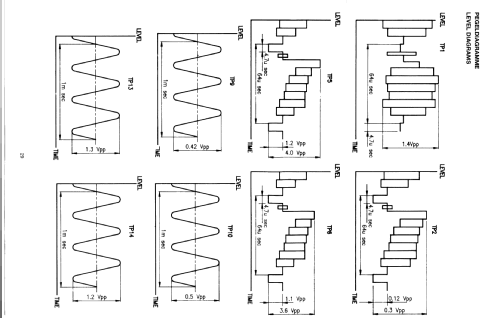

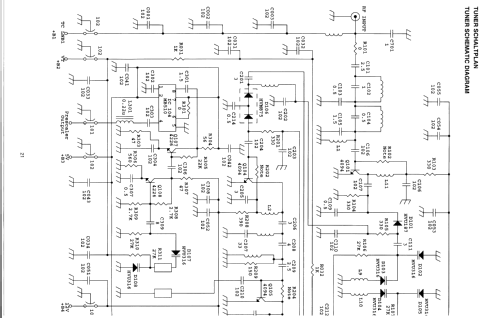

• Schematics

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop; ZF/IF 479,5 MHz kHz

• Wave bands
• SAT-IF

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Sat-Receiver FR 105 M6 - Siemens & Halske, -Schuckert

• Shape
• Book-shelf unit.

• Notes

• Analoger Sat-Receiver FR 105 M6.
  Eingangsfrequenz 950-2050 MHz,
  eingebauter Modulator K33-K39,
  Fernbedienung FR 105.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by a member from D. See "Data change" for further contributors.

• Other Models

• Here you find 2523 models, 2120 with images and 1333 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
