• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1954 ?

• Category
• Teaching aids-material

• Radiomuseum.org ID
• 120899

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF80 EC92 ECH81 EF89 EM80 EABC80 EL84

• Number of Transistors

• Semiconductors
• B300C120

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 120; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Schulrundfunkgerät 6 S Ela 5609 - Siemens & Halske, -Schuckert

• Shape
• Tablemodel with Push Buttons.

• Notes

• Schulrundfunkgerät.

  NF-Eingang: 1MΩ, 25mV für 50mW Ausgangsleistung,
  Magnetton-Aufnahmeausgang: 50mV,
  Lautsprecherausgang: 100V/6kΩ.

  Chassis ähnlich wie Siemens Meistersuper 843W

• Literature/Schematics (1)

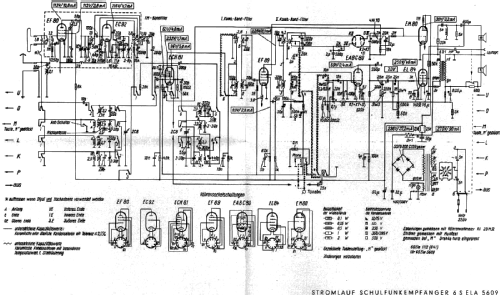

• -- Schematic

• Author
• Model page created by Willi Ribbe. See "Data change" for further contributors.
