Schulrundfunkgerät 6S Ela 5608
Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1952 ?
- Category
- Teaching aids-material
- Radiomuseum.org ID
- 114024
- Number of Tubes
- 8
- Number of Transistors
- Semiconductors
- Tr.Gl.=Metal-rectif.
- Main principle
- Superheterodyne (common); ZF/IF 468/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 8 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 155; 220; 240 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

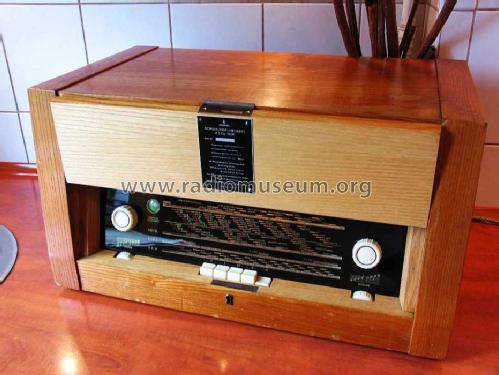

- Model: Schulrundfunkgerät 6S Ela 5608 - Siemens & Halske, -Schuckert
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 770 x 520 x 340 mm / 30.3 x 20.5 x 13.4 inch
- Notes
-
Konstruktion speziell für den Schulfunk.

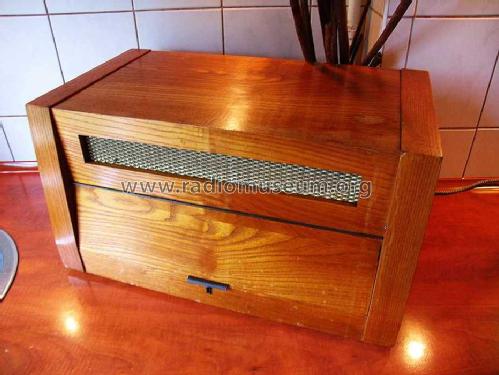

2 Lautsprecher in der Rückfront, der Schulklasse zugewandt.
Gleiches Chassis wie im Siemens Gross-Super 53 SH924W.
- Net weight (2.2 lb = 1 kg)
- 19 kg / 41 lb 13.6 oz (41.85 lb)
- Price in first year of sale
- 520.00 DM
- Author
- Model page created by Willi Ribbe. See "Data change" for further contributors.
