• Country
• Italy

• Manufacturer / Brand
• Siemens Italia; Milano

• Year
• 1951 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 96153

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UF41 UBC41 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 469 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110, 125, 140, 160, 220, Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

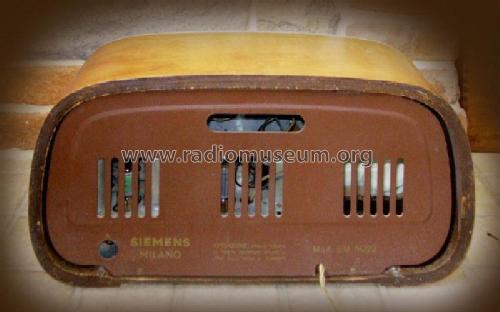

• Model: SM5022 - Siemens Italia; Milano

• Dimensions (WHD)
• 450 x 230 x 180 mm / 17.7 x 9.1 x 7.1 inch

• Notes
• Serie ANIE.

• Source of data
• - - Data from my own collection

• Mentioned in
• -- Schematic (Il Radio Libro D.E. Ravalico 13a edizione Hoepli editore 1952.)

• Author
• Model page created by Pierantonio Ganazzin. See "Data change" for further contributors.
