SM5123

• Country
• Italy

• Manufacturer / Brand
• Siemens Italia; Milano

• Year
• 1952/1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 97446

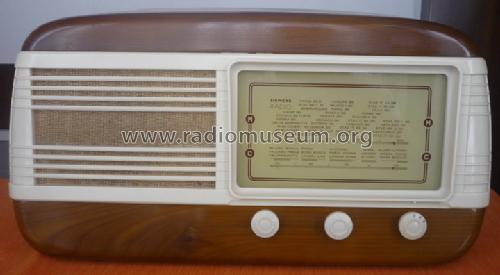

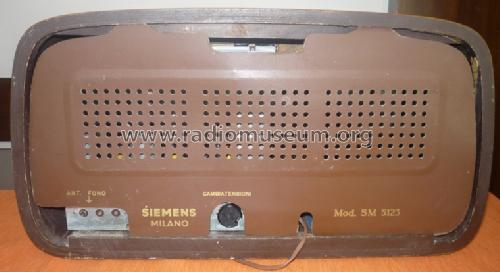

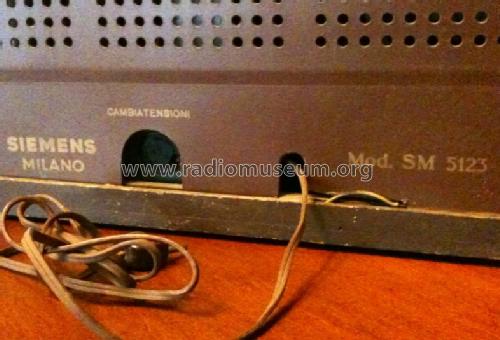

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH42 EF41 EBC41 EL41 EZ40

• Main principle
• Superheterodyne (common); ZF/IF 469 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: SM5123 - Siemens Italia; Milano

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 540 x 280 x 195 mm / 21.3 x 11 x 7.7 inch

• Notes
• Gamme ricevute: OM 187-570 mt, OC 25-50 mt

• Source of data
• Guida Pratica Antique Radio III (2000)

• Mentioned in
• Elettronica - n.1-2 - gennaio-aprile 1953

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
