SM526

• Country
• Italy

• Manufacturer / Brand
• Siemens Italia; Milano

• Year
• 1955/1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 117405

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH81 UF41 UBC41 UL41

• Main principle
• Superheterodyne (common); ZF/IF 469 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220; 240 Volt

• Loudspeaker

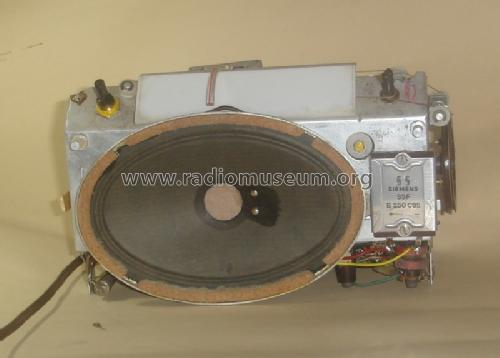

• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.2 W (unknown quality)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: SM526 - Siemens Italia; Milano

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 245 x 160 x 115 mm / 9.6 x 6.3 x 4.5 inch

• Notes

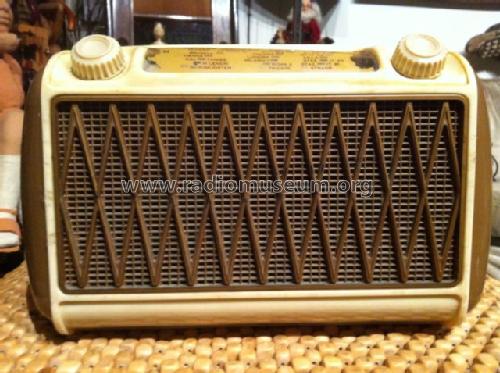

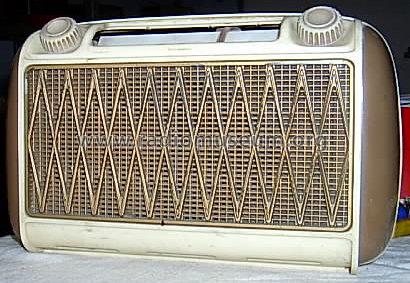

• Serie ANIE. Frontale in materiale plastico. Tutto il mobile è in materiale plastico; la parte frontale della griglia è dicolore oro antico; la parte superiore (Comandi e scala parlante) color avorio; La parte superiore e laterale in imitazione legno; il retro in colore marrone. L'antenna interna è realizzata sulla parte interna del coperchio posteriore con un avvolgimento aperto di 20 spire di filo litz.

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Literature/Schematics (1)
• -- Schematic (D.E. Ravalico, Il Radiolibro, 16° edizione, 1957, Hoepli)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
