• Year
  • 1957/1958
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 117403

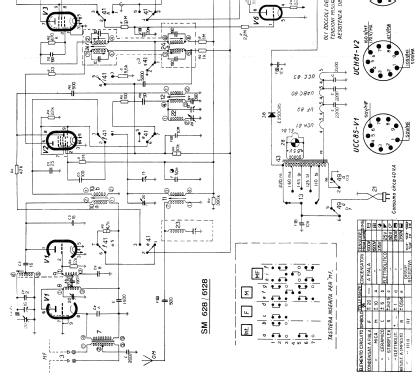

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 469/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 145; 160; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 2.5 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: SM628 - Siemens Italia; Milano
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 275 x 185 x 160 mm / 10.8 x 7.3 x 6.3 inch
  • Notes
  • Altoparlante magnetodinamico ellittico di dimensioni 160x105mm. Serie ANIE MF.

  • Net weight (2.2 lb = 1 kg)
  • 3.8 kg / 8 lb 5.9 oz (8.37 lb)
  • Price in first year of sale
  • 33,500.00 ITL
  • Mentioned in
  • -- Original prospect or advert
  • Literature/Schematics (1)
  • -- Schematic
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
