• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1953/1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 5207

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• UF80 UF80 UCH81 UF41 DM70 UABC80 UL41

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• AC/DC-set / 110; 120; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch

• Material
• Wooden case

• from Radiomuseum.org

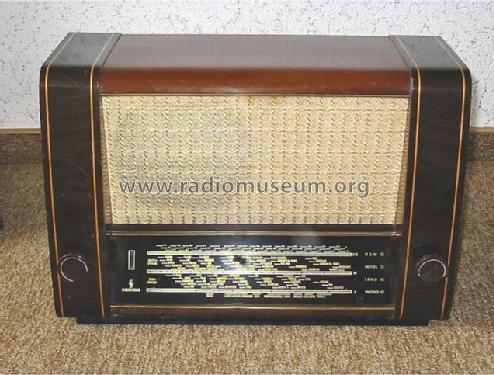

• Model: Spezialsuper 54 SH830GW/L - Siemens & Halske, -Schuckert

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 485 x 300 x 214 mm / 19.1 x 11.8 x 8.4 inch

• Notes
• Letztes Allstrom-Radio von Siemens. Im VDR-Handbuch 1953/54 nur als 830GW geführt.

• Net weight (2.2 lb = 1 kg)
• 5.4 kg / 11 lb 14.3 oz (11.894 lb)

• Price in first year of sale
• 245.00 DM

• Source of data
• Kat.d.Rundf.GrossH.1953/54 / Radiokatalog Band 1, Ernst Erb

• Mentioned in
• -- Original-techn. papers.
