• Year
  • 1949/1950
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 5225

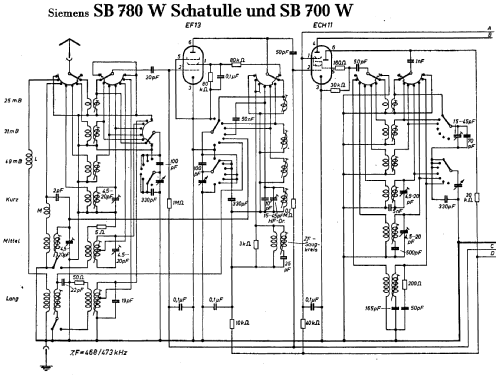

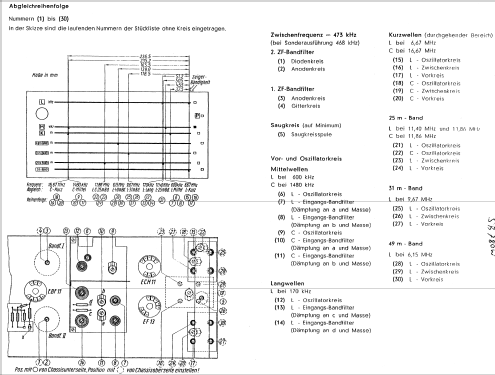

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superhet with RF-stage; ZF/IF 468 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and more than two Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-240 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org

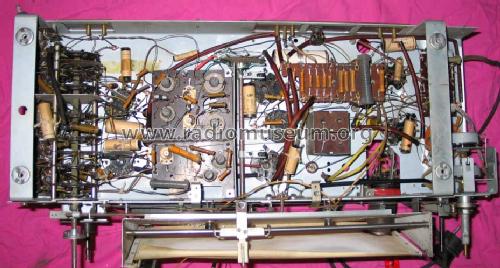

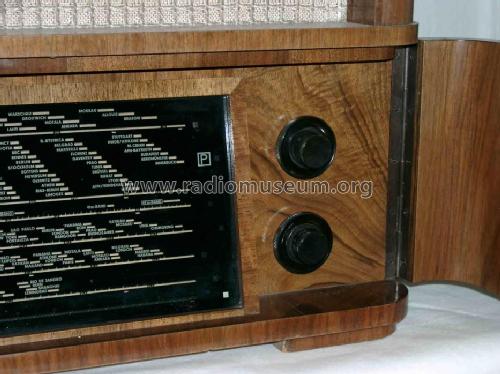

  • Model: Schatulle SB780W Spitzensuper SB780W - Siemens & Halske, -Schuckert
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 690 x 580 x 440 mm / 27.2 x 22.8 x 17.3 inch
  • Notes

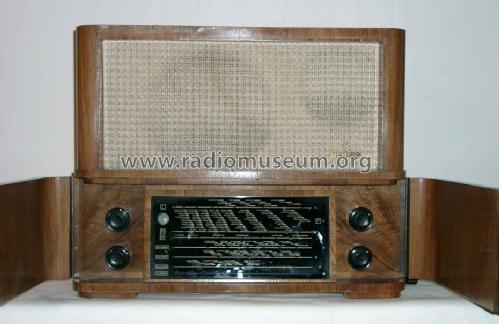

  • In der Literatur Spitzensuper, auf der Geräterückwand Schatulle genannt. Deshalb beide kpl. Schreibweisen. 2 halbhohe Türen, die den Lautsprecher frei lassen (im Gegensatz zur Schatulle SB700W mit hohen Türen).
    var.BBr.; [572]
  • Net weight (2.2 lb = 1 kg)
  • 27.5 kg / 60 lb 9.2 oz (60.573 lb)
  • Price in first year of sale
  • 980.00 DM
  • Circuit diagram reference
  • Lange-Nowisch
  • Picture reference
  • Das Modell ist im «Radiokatalog» (Erb) abgebildet.
