• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1933/1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 5459

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• RENS1264 RENS1264 RENS1374d RGN1064

• Main principle
• Superheterodyne (common); ZF/IF 232/500 kHz; Super, reaction, but not adjustable

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

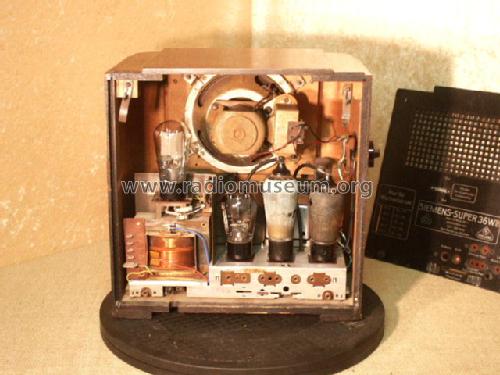

• Model: Sport-Super 36WLK - Siemens & Halske, -Schuckert

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 330 x 340 x 230 mm / 13 x 13.4 x 9.1 inch

• Notes

• ZF - MW = 232 kHz,
  ZF - LW = 500 kHz.
  Kathoden - Mischung.

  Paralleltype zum Telefunken Nauen 330WLK in anderem Gehäuse.
  Paralleltype zum AEG Super-Geatron 303WLK in anderem Gehäuse.

• Price in first year of sale
• 235.00 RM !

• Source of data
• Radio-Zentrale Prohaska 1933/34 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
