Stereo-Decoder RE4210
Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1963/1964
- Category
- Radio module post 1925 (not a part, not a key)
- Radiomuseum.org ID
- 24789

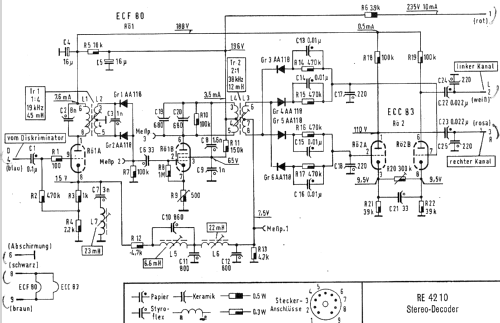

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Wave bands
- - without
- Power type and voltage
- Powered by external power supply or a main unit.
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Stereo-Decoder RE4210 - Siemens & Halske, -Schuckert
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 115 x 135 x 45 mm / 4.5 x 5.3 x 1.8 inch
- Notes
- Dioden: 6× AA118.
- Net weight (2.2 lb = 1 kg)
- 0.5 kg / 1 lb 1.6 oz (1.101 lb)
- External source of data
- Erb
- Source of data
- Handbuch VDRG 1963/1964
