• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1989 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 191414

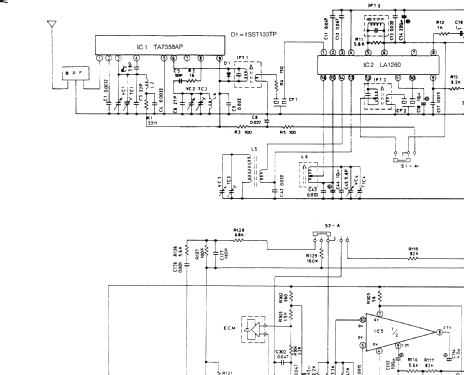

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / 6 x 1,5 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Stereo Radiorecorder RM845 - Siemens & Halske, -Schuckert

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 500 x 130 x 100 mm / 19.7 x 5.1 x 3.9 inch

• Notes
• Double cassette, normal and high speed dubbing.

• Net weight (2.2 lb = 1 kg)
• 2.3 kg / 5 lb 1.1 oz (5.066 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Jouko Laukkanen. See "Data change" for further contributors.
