• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1990 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 145575

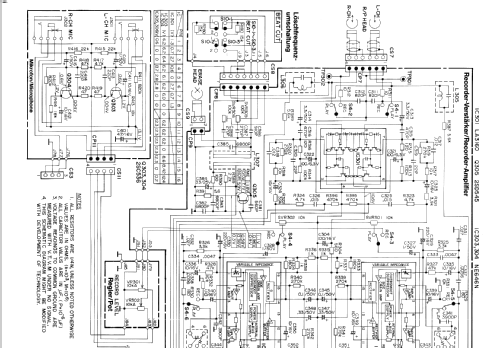

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 40 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org
• Model: Stereo System RS100 - Siemens & Halske, -Schuckert

• Shape
• Book-shelf unit.

• Notes
• 7 IC; Verstärker: Ausgangsleistung 2 x 20 Watt Sinus, Plattenspieler Riemenantrieb Magnetsystem MG-1A

• Mentioned in
• Original Siemens Service Unterlagen

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.

• Other Models

• Here you find 2522 models, 2119 with images and 1334 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
